Kardex Shuttle XP250


Machinehandel De Leeuw BV (Antoine de Leeuw)
Baarle-Nassau

Geplaatst op: 06-02-2022 | 849 keer bekeken
Referentie: MACHINEHANDELAREN-196
Bekijk alle advertenties van deze verkoper

Vorige in categorie | Volgende in categorie
MachineHandelaren.nl
MachineHandelaren.nlMachineHandelaren.nl

Omschrijving

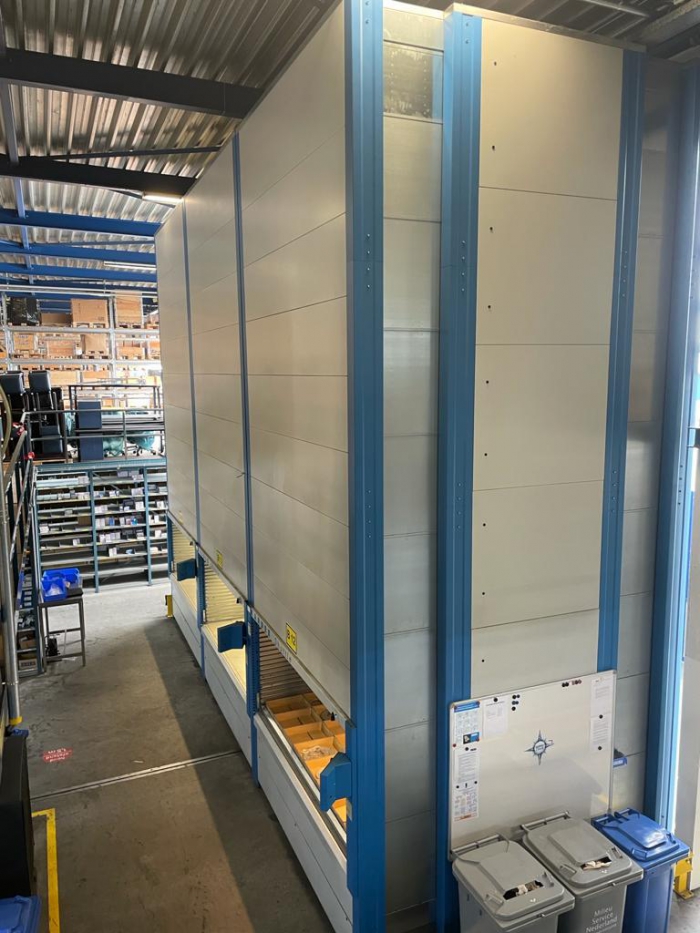

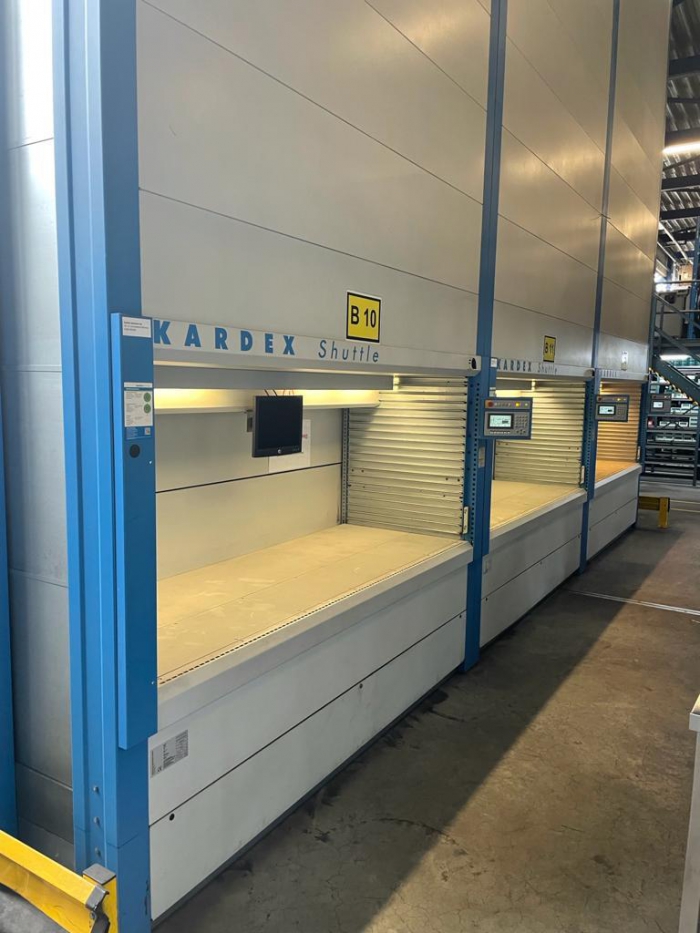

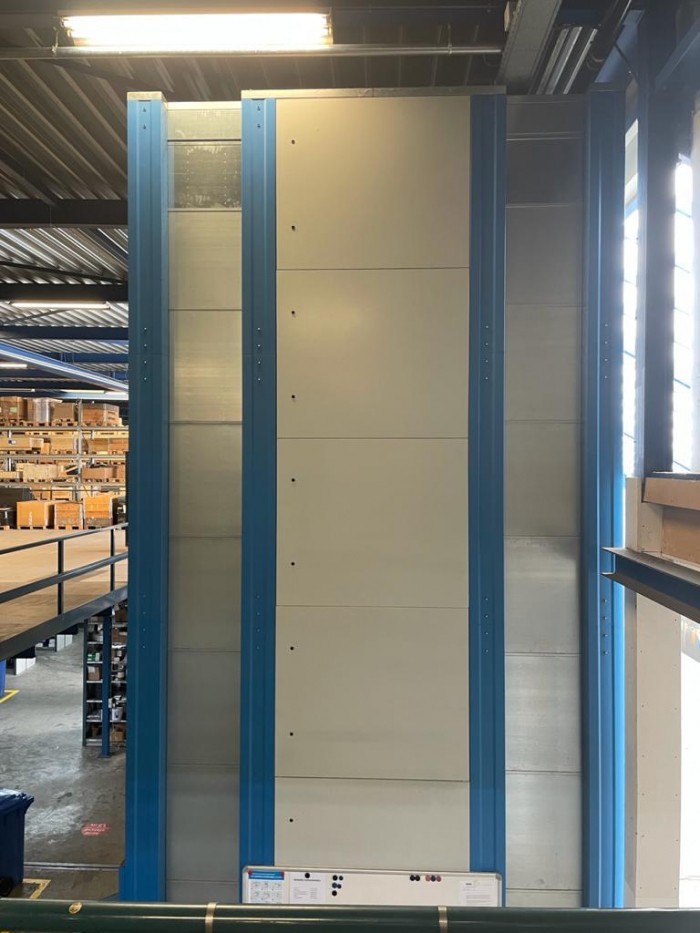

Geautomatiseerd magazijnoptimalisatie opslagsysteem KARDEX Shuttle XP250

System Type : SHUTTLE-XP-250-2450x813
Control : C2000, with Op-C2000 B/W display
Serial No. : 03005982/002
Year of construction : 2003
Total Load : 2x30000 kg
Load per tray : 200 kg (evenredig verdeeld)
Tray dimension : 2450 x 813 mm
Number of tray's : 80 pieces (more on request)
Dimensions Shuttle W x D x H : 2780 x 2921 x 6550 mm
Power : 3/N/PE400 V , 12 A , 50/60 HZ , 8,6 kVA


Deze aanbieding is geldig mits systeem is onverkocht


Technical details each Shuttle:
- Maximum total capacity of the KARDEX Shuttle XP : 2 x 30000 kg
- Maximum tray capacity : 200 kg each tray,
evenly distributed, more trays can be ordered.
- Tray dimensions : 2450 x 813 mm
- Machine dimensions : Wide x Depth x Height : 2780 x 2921 x 6550 mm
- Footprint of the system appx: 8.09 m2
- Capacity with 80 trays : appx. 160 m2 , every tray is appx. 2 m2
- Electronic volume measuring system in 25 mm screen (grid)
- An access opening with sliding doors to protect people and stored goods
- Control C2000 with graphic display OP-C2000 B/W
- Anti-dazzle lighting above access point
- Personal Key-code possibility
- Containers locking / security
- Use of toothed-belt for minimum noise
- Use of toothed-belt for fastest order picking
- The working positions can be adjusted individually depending on the body size
- Distances can be realized in steps of 25mm by arranging the support profile.
a prerequisite for high compression storage
- Weight management controls the weight of the tray/Shuttle
- Weight management controls the speed regulation


Prijs : Op aanvraag alleen via e-mail
Prijs : excl. BTW, inclusief transport en montage
Levertijd : uit voorraad


Machinehandel De Leeuw BV is gespecialiseerd in gebruikte machines en toebehoren voor de verspanende industrie en gebruikte paternoster systemen van onder andere Kardex , Hanel / Haenel , Electrolux , Bertello , Megamat , Lista , Denocard en automatische opslag systemen zoals de Kardex Shuttle XP en XPlus systemen.
