Omschrijving

Gebruikte Kardex High Speed Shuttle magazijnoptimalisatie.

Wij kunnen u aanbieden zoals gespecificeerd in deze aanbieding:

2 stuks gebruikte KARDEX High Speed Shuttles XP 500 + Kardex PowerPick Globel software +

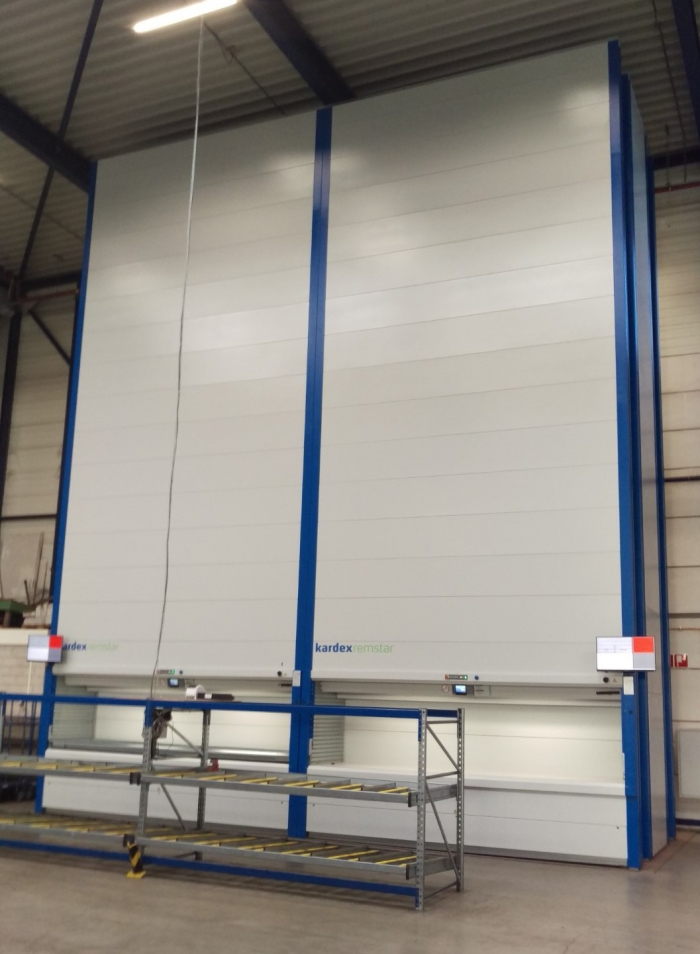

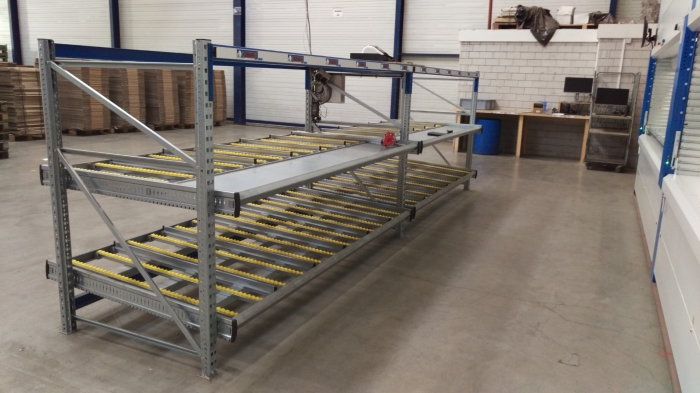

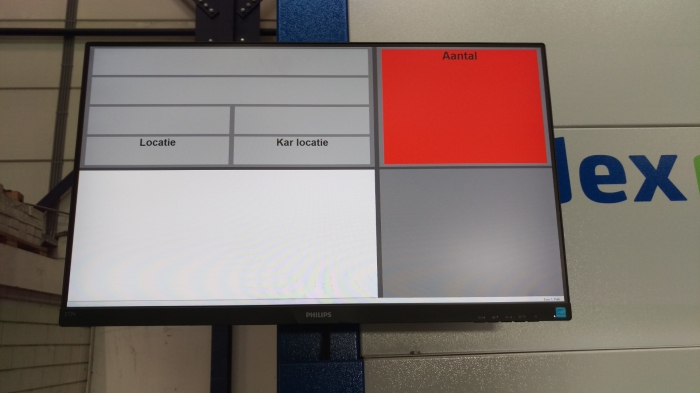

Put to Light oplossing + Flowrack + volledig geinstalleerd en in werkende conditie in uw magazijn.

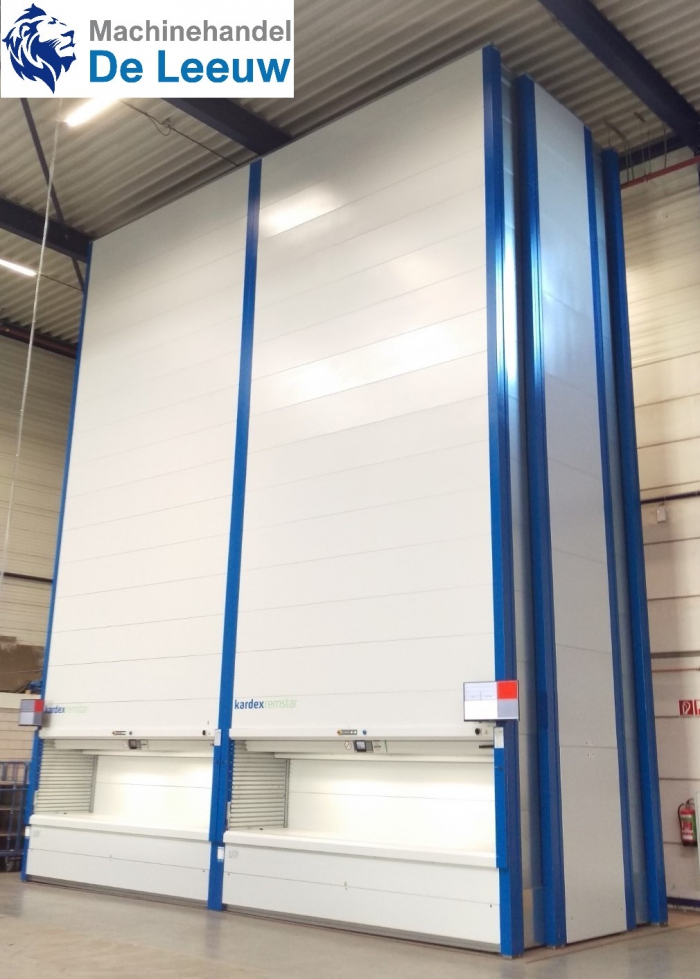

Geautomatiseerd magazijnoptimalisatie opslagsysteem KARDEX Shuttle XP500

System Type : SHUTTLE-XP-500-3650x864
Control : Logicontrol, with colour Touchscreen display
Serial No. : 18005490/001 & 18005490/002
Year of construction : 2019 !!
Total Load : 2x33500 kg
Load per tray : 450 kg
Tray dimension : 3650 x 864 mm
Number of tray's : 91 pieces (more on request)
Dimensions Shuttle W x D x H : 3980 x 3074 x 9650 mm
Power : 3/N/PE400 V , 17 A , 50/60 HZ , 8,6 kVA


Technical details each Shuttle:
- Maximum total capacity of the KARDEX Shuttle XP : 2 x 33500 kg
- Maximum tray capacity : 91 tray's Medium UniS T2 , 450 kg each ,
evenly distributed , more tray's can be ordered.

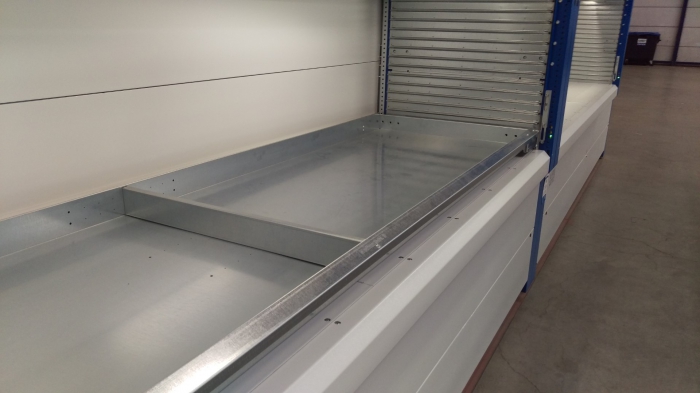

- Tray dimensions : 3650 x 864 mm
- Machine dimensions : Wide x Depth x Height : 3980 x 3074 x 9650 mm
- Footprint of the system appx: 12,23 m2
- Capacity with 91 trays : appx. 287 m2 , every tray is appx. 3,15 m2
- Electronic volume measuring system in 25 mm screen (grid)

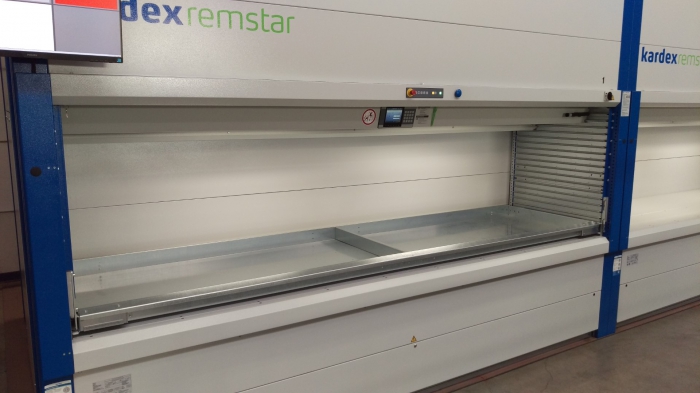

- An access opening with sliding doors to protect people and stored goods

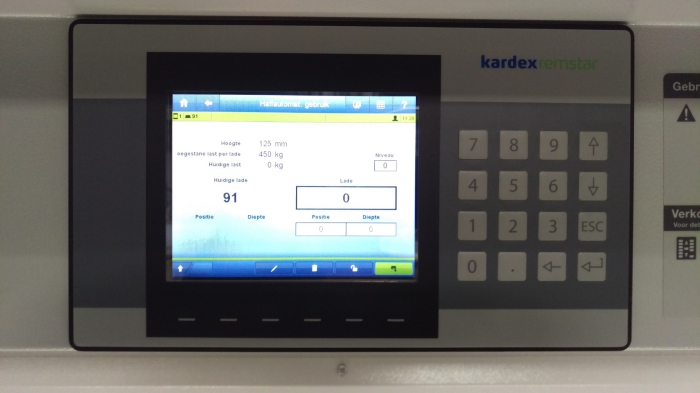

- Control Logicontrol, with colour Touchscreen graphic display
- LED product pick pointer
- Anti-dazzle lighting above access point
- Personal Key-code possibility
- Containers locking / security
- Use of toothed-belt for minimum noise
- Use of toothed-belt for fastest order picking
- The working positions can be adjusted individually depending on the body size
- Distances can be realised in steps of 25mm by arranging the support profile.
a prerequisite for high compression storage
- Weight management controls the weight of the tray/Shuttle
- Weight management controls the speed regulation


Prijs voor de totale Kardex magazijnoptimalisatie : op aanvraag via e-mail
Nieuwprijs in 2019 was bijna € 180.000,-


Machinehandel De Leeuw BV is niet verantwoordelijk voor eventuele verschillen
in deze aanbieding en de actuele machine
Deze aanbieding is geldig mits machine is onverkocht.


Machinehandel De Leeuw BV is gespecialiseerd in gebruikte paternoster systemen van
onder andere Kardex , Hanel / Haenel , Electrolux , Bertello , Megamat , Lista , Denocard
en automatische opslag systemen zoals de Kardex Shuttle XP en XPlus systemen.
