Geautomatiseerd verticaal opslagsysteem KARDEX Shuttle XP500 - Verkocht

MachineHandelaren.nl
MachineHandelaren.nlMachineHandelaren.nlMachineHandelaren.nl

Omschrijving

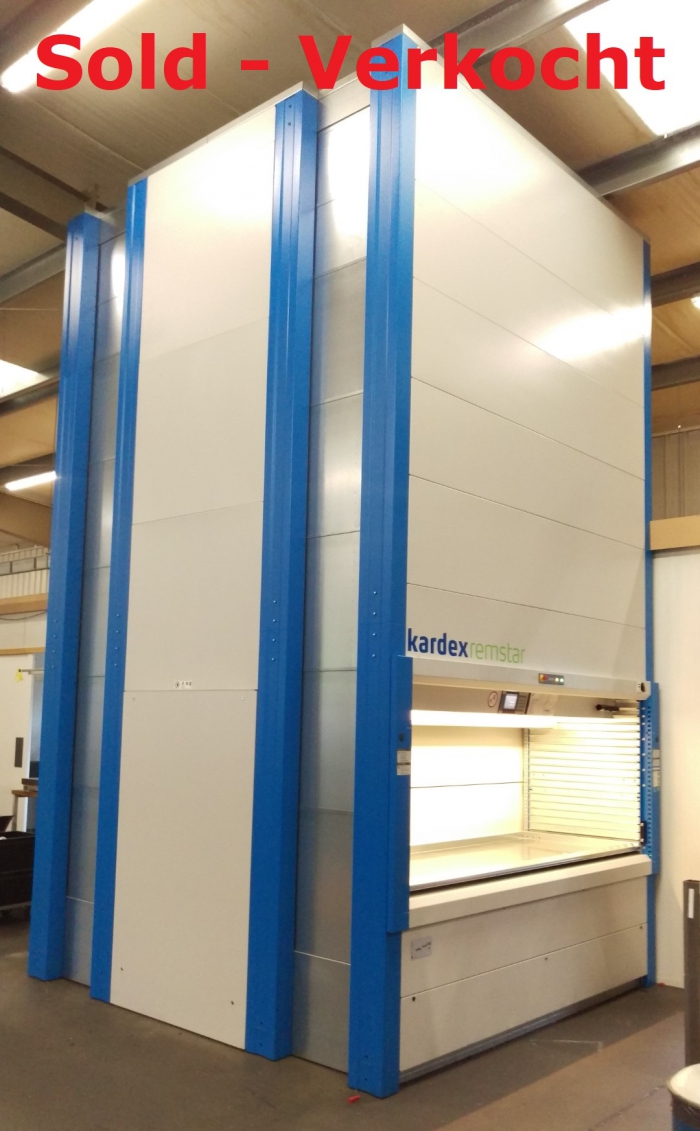

SOLD - Verkocht

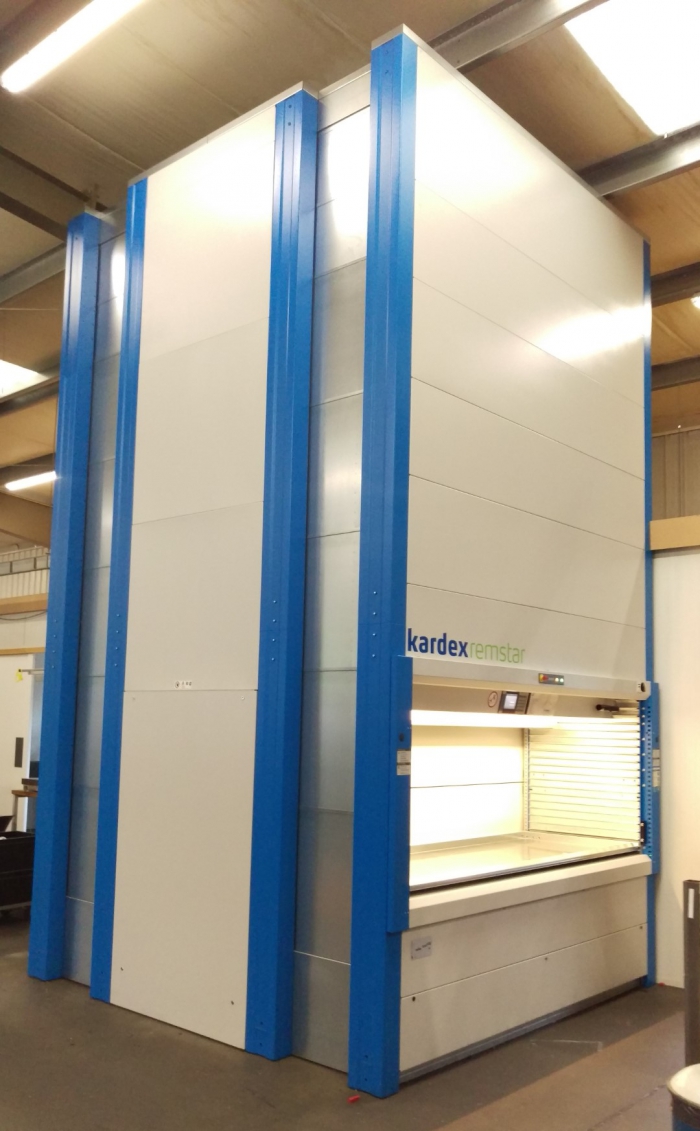

Geautomatiseerd verticaal opslagsysteem KARDEX Shuttle XP500

System Type : SHUTTLE-XP-500-2450x813

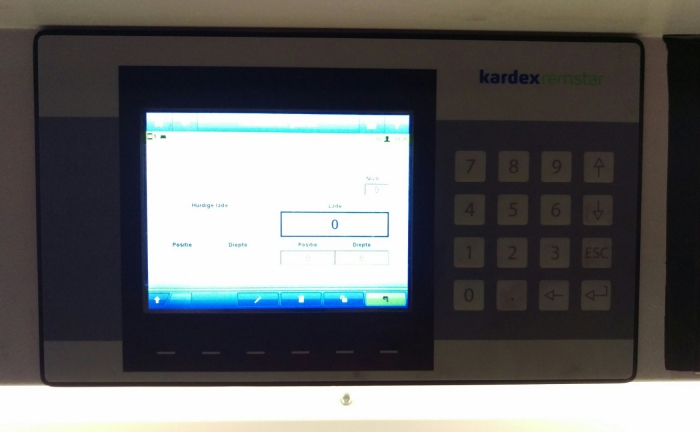

Control : Logicontrol, with colour Touchscreen display
Serial No. : 14003558/001
Year of construction : 2014 !!
Total Load : 2x33500 kg
Load per tray : 370 kg
Tray dimension : 2450 x 813 mm
Number of tray's : 43 pieces (more on request)
Dimensions Shuttle W x D x H : 2780 x 2921 x 5050 mm
Power : 3/N/PE400 V , 17 A , 50/60 HZ , 8,6 kVA

Technical details :
- Maximum total capacity of the KARDEX Shuttle XP : 2 x 33500 kg
- Maximum tray capacity : appx. 43 tray's MEDIUM , 370 kg each ,
evenly distributed , more tray's can be ordered.
- Tray dimensions : 2450 x 813 mm
- Machine dimensions : Wide x Depth x Height : 2780 x 2921 x 5050 mm
- Footprint of the system appx: 8 m2
- Capacity with 43 trays : 86 m2 , every tray is appx. : 2 m2
- Electronic volume measuring system in 25 mm screen (grid)
- An access opening with sliding doors to protect people and stored goods
- Control Logicontrol, with colour Touchscreen graphic display
- Anti-dazzle lighting above access point
- Personal Key-code possibility
- Containers locking / security
- Use of toothed-belt for minimum noise
- Use of toothed-belt for fastest order picking
- The working positions can be adjusted individually depending on the body size
- Distances can be realised in steps of 25mm by arranging the support profile.
a prerequisite for high compression storage
- Weight management controls the weight of the tray/Shuttle
- Weight management controls the speed regulation

Prijs : Op aanvraag alleen via e-mail

Machinehandel De Leeuw BV is niet verantwoordelijk voor eventuele verschillen in deze aanbieding en de actuele machine
Deze aanbieding is geldig mits machine is onverkocht.

Machinehandel De Leeuw BV is gespecialiseerd in gebruikte paternoster systemen van onder andere Kardex , Hanel / Haenel , Electrolux , Bertello , Megamat , Lista , Denocard en automatische opslag systemen zoals de Kardex Shuttle XP en XPlus systemen.
