MACO halfautomatische cirkelzaagmachine

Omschrijving

SOLD - Verkocht

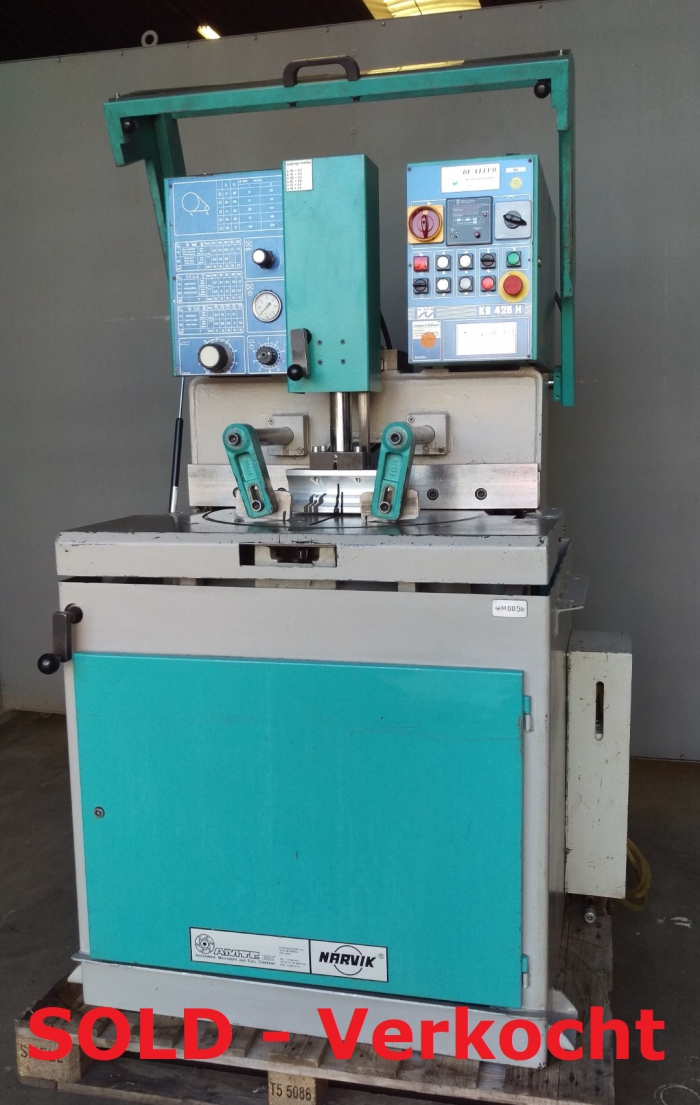

MACO halfautomatische cirkelzaagmachine

Model : KS 425 H
Max. saw blade : Ø 425 mm
Mead motor : 1,3 – 2,6 kW
Head motor revolutions : 700 – 1400 Rpm
Cutting speeds : 13-26 / 18-36 / 52-104 / 74-148 / 104-210 m/min
Cutting capacity 90° : Ø 140 mm /  125 mm / IPN-UPN 220 – 240 mm
Cutting capacity 45° : Ø 140 mm /  120 mm / IPN-UPN 180 – 180 mm
Cutting table height : 1000 mm
Hydraulik unit motor power : 1 HP
Coolant liquid motor power : 0,08 HP
Working pressure : 40 bar
Vertical clamping force : 1855 kg
Horizontal clamping force : 604 kg
Vertical vice clamping stroke : 6 mm
Horizontal vice clamping stroke : 6 mm
Counter-vice dispacement : 150 mm
Dimensions : 1040 x 1180 x 1700 mm
Weight : 850 kg

Semi-automatic blade sawing machine, fully hydraulic-operated, with upstroke blade for angled cuts trom ±90'.
Semi-automatic cycle: closing of the horizonal vices, of the vertical vice, motor start, blade upstroke, blade stop, head descent, opening of the vices.
Manual cycle: the stopping of the blade upstroke is given by pressing the stop push button

- Head stroke adjustment through a knob on the panel, and self-adjusting system
- Adjustment on the panel for the vice closing pressure

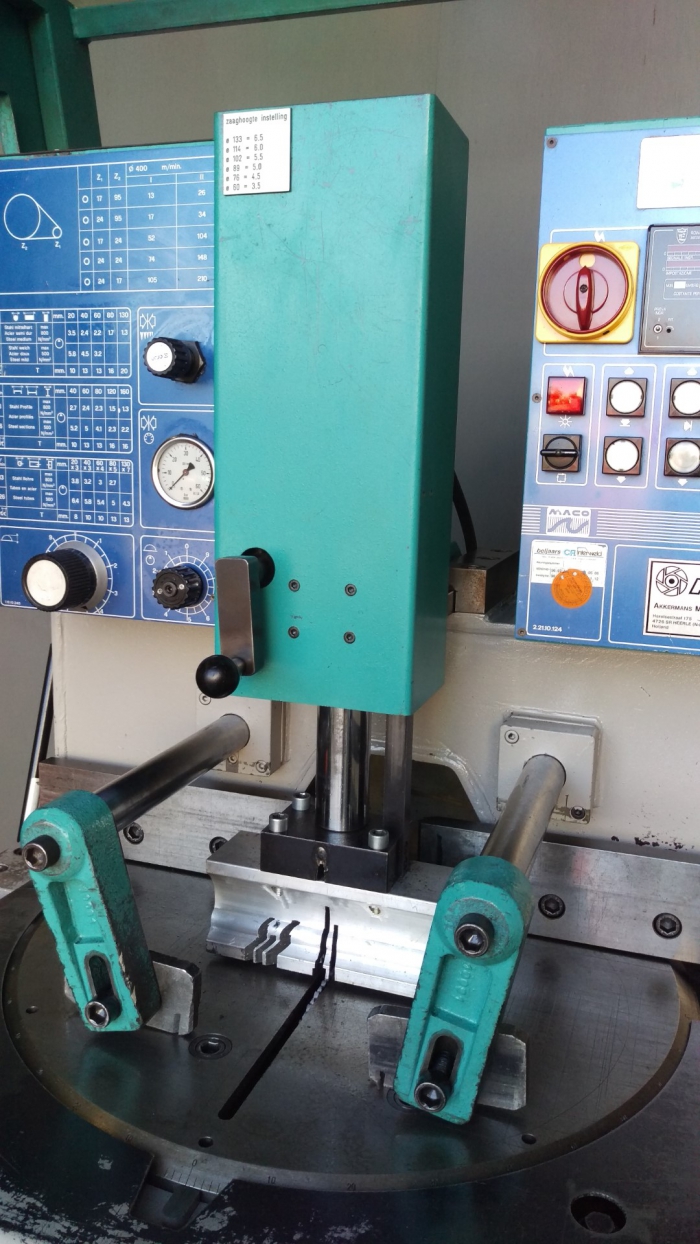

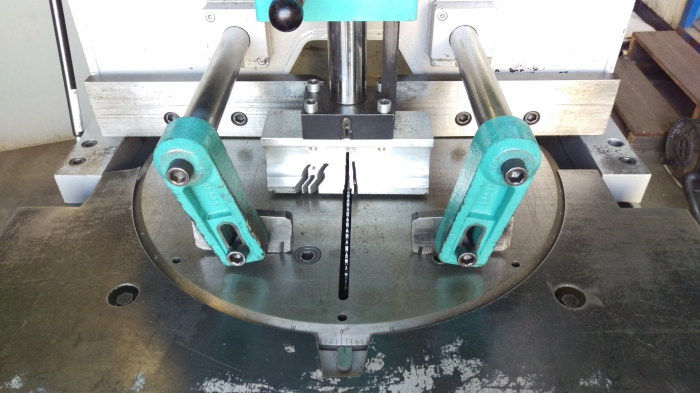

- Horizontal and vertical vices with long stroke for the adjustment of the workpiece dimension and with self-adjusting short stroke when operating during the cycle
- Adjustable position of the countervice-bridge and of the vertical vice by means of a handwheel
- Adjustable bar stops at 0° and ±45° and at 90° to easily position the table
- Single cut selector, with elimination of the return stroke of the vices during their adjustment

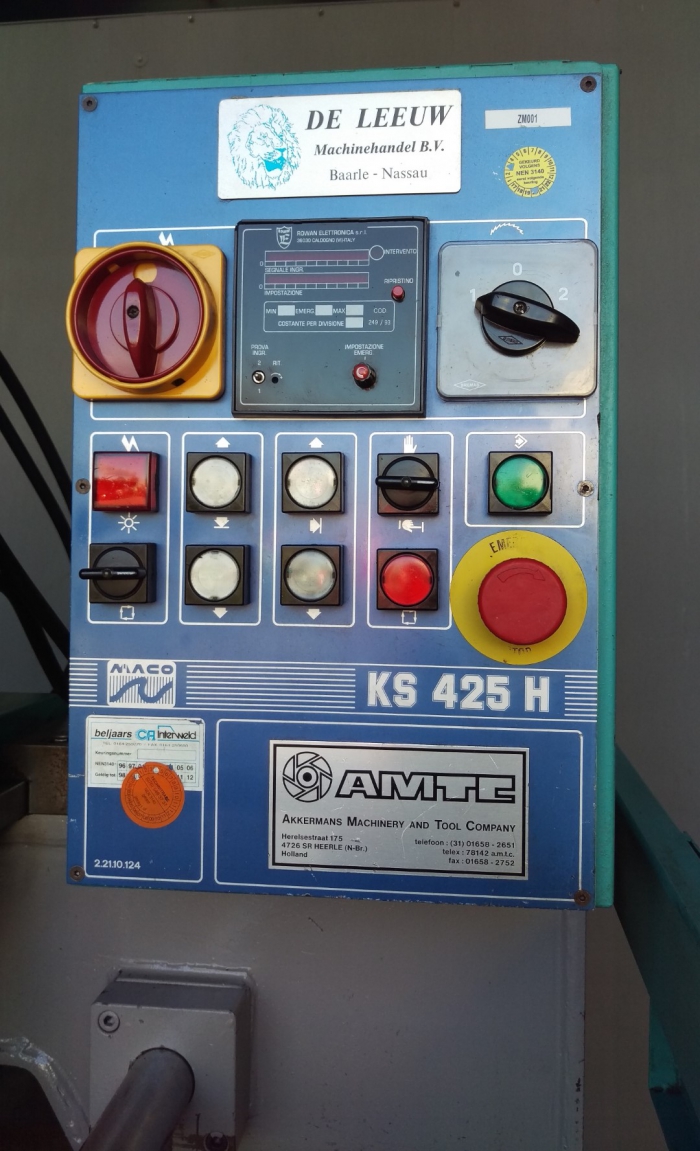

- Selector for the manual-semi automatic cycle
- Electronic blade overload with setting of the static tripping limit

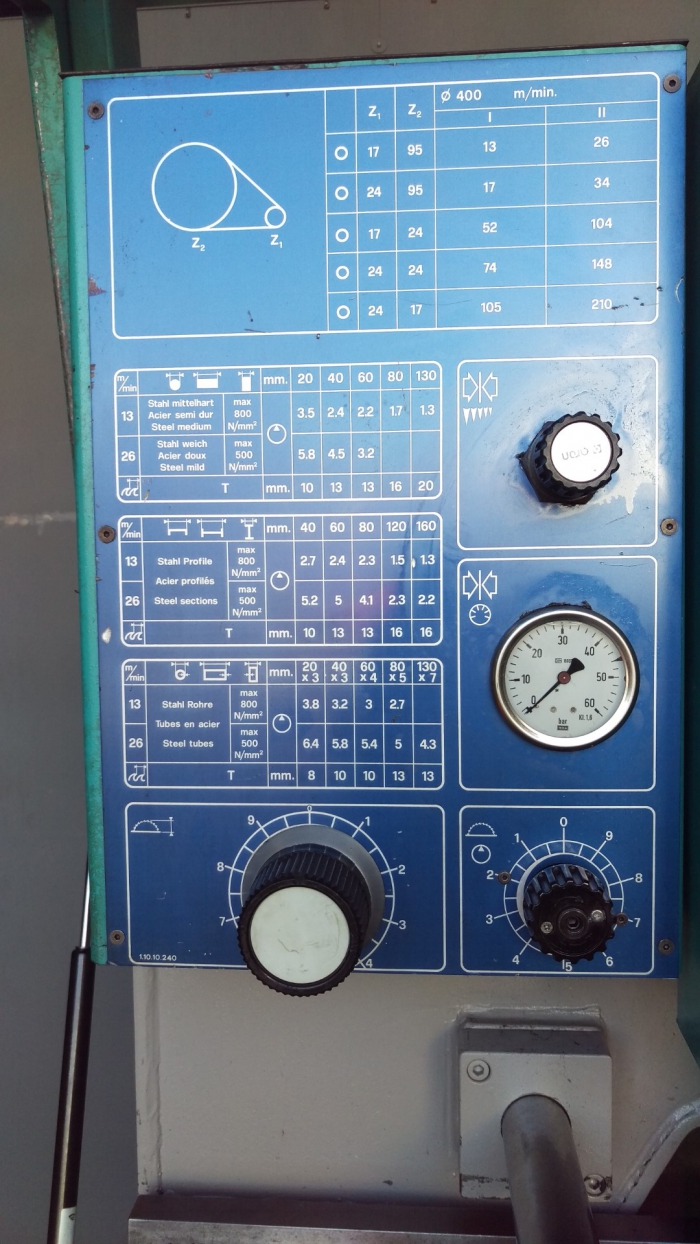

- Primary drive with possibility of changing gears in order to obtain 10 speeds
- Spiral head gears, hardened and ground, with adjustable slack

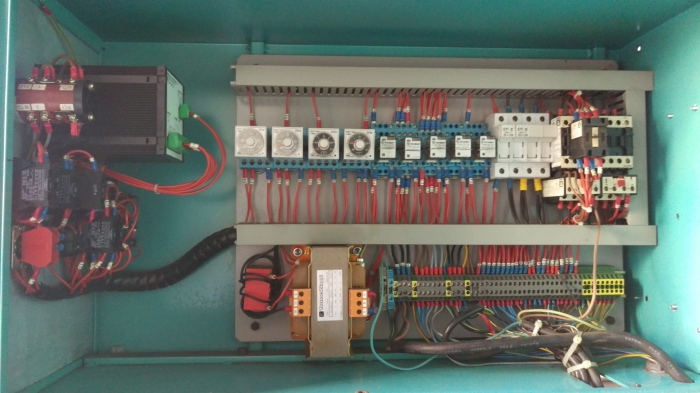

- Low voltage wiring installation (24V), emergency device, thermal motor overload relay, door protection micro and protection guard for the operator
- Dual blade lubricating pump
- Pressure discharging solenoid valve.

Prijs voor de zaagmachine MACO, model KS 425 H : ……..op aanvraag via e-mail

Leveringscondities
Levertijd: uit voorraad , t.t.v.v.
Levering: af Baarle-Nassau
Betaling: voor afhaling
Prijzen: gelden netto, exkl. B.T.W.

Machinehandel De Leeuw BV kan niet aansprakelijk worden gesteld voor
verschillen in de technische gegevens in deze aanbieding en de actuele machine

Machines en toebehoren worden gekocht in de staat waarin deze zich bevinden en gekend door de koper. Op gebruikte machines en toebehoren kunnen wij geen garantie verlenen
